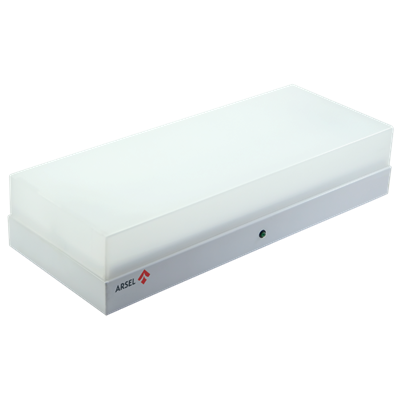

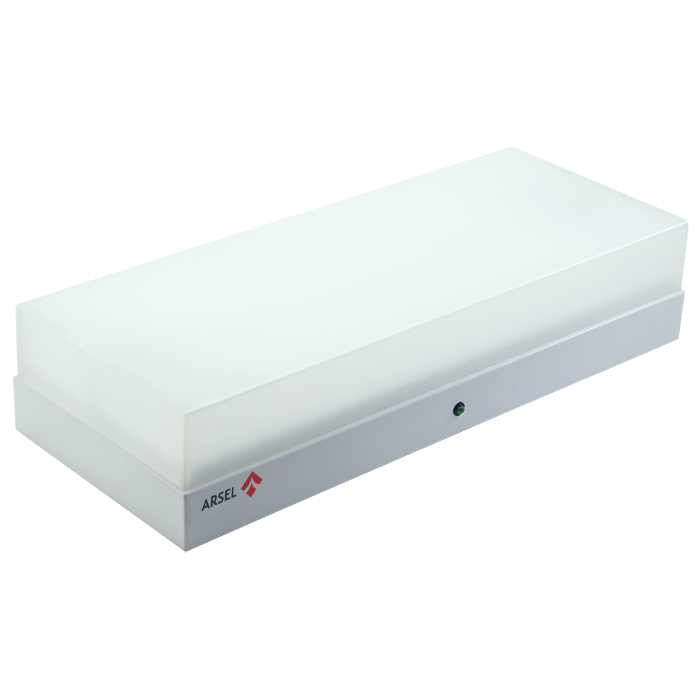

Starlite Emergency Lighting Fixture

• Surface mounting, metal sheet case
• 3mm acrylic diffuser
• DALI compatible models

USAGE AREAS
• Offices
• Grocery stores
• Corridors
• Restaurants and bars
• Universities, Student dormitories, Schools and colleges
LAMP OPTIONS
• White light LED bulb, 6500°K

BODY STRUCTURE
• Body - Powder white painted sheet metal chassis
• With label panel - 3 mm acrylic panel, application of latex on white foil
• BATTERY - Nickel-cadmium in all models

OPTIONS
• Continuous and emergency models
• 1-3 hour emergency backup times
• DALI lighting control system compatible models

PRODUCT DOCUMENT

PRODUCT INFORMATION

• For door-top applications, suitable for standards, for decorative emergency exit routing.
• The mains supply voltage is standard 220 volts AC 50 Hz.
• Charging time for first use is 24 hours.
• It can withstand fluctuations up to 285 volts at mains voltage.
• Switches to emergency lighting mode under 150 volts, charging over 185 volts
• It is manufactured according to TS 8710 EN60598-2-22 standard in the framework of ISO 9001-2000 quality management system.

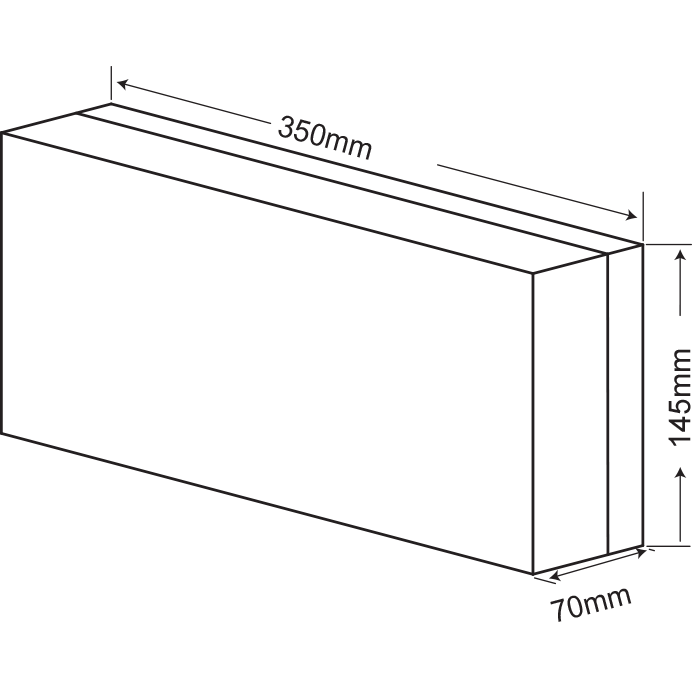

TECHNICAL DRAWINGS

PRODUCT FEATURES

STARLITE EMERGENCY LIGHTING AND GUIDANCE FIXTURE
MODEL CODE	LIGHTING STYLE	LAMP	DURATION	DIMENSIONS (W-L-H)mm	WEIGHT	IP Class	İsolation Class	Operation Temp	POWER	Operation Voltage
AE-01113-L	Non-Maintained	500lm LED	Emergency 180 m.	70x350x145mm	1,90kg	40	I	-16/+45°	1w	220-240
AE-01213-L	Maintained	500lm LED	Emergency 180 m.	70x350x145mm	1,90kg	40	I	-16/+45°	5,5w	220-240
AE-01010	Mains-Light	500lm LED	—	70x350x145mm	1,55kg	40	I	-16/+45°	4,7w	220-240
STARLITE EMERGENCY LIGHTING AND GUIDANCE FIXTURE (DALI COMPATIBLE)
MODEL CODE	LIGHTING STYLE	LAMP	DURATION	DIMENSIONS (W-L-H)mm	WEIGHT	IP Class	İsolation Class	Operation Temp	POWER	Operation Voltage
AE-01211-L DALİ	Maintained	500lm LED	Emergency 60 m.	70x350x145mm	2,00kg	40	I	-16/+45°	11w	220-240
AE-01213-L DALİ	Maintained	500lm LED	Emergency 180 m.	70x350x145mm	2,20kg	40	I	-16/+45°	11w	220-240
